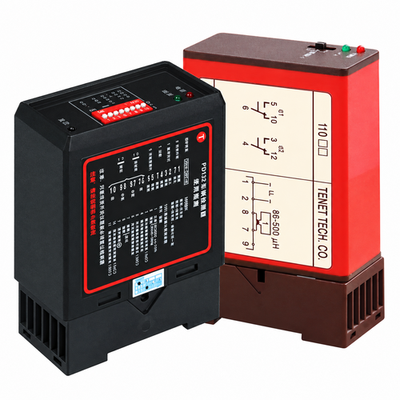

Loop detector

Operating Voltage 220V AC, 110V AC, 24V DC/AC, or 12V DC/AC (optional)

Rated Power 4.5W

Output Mode Relay output

Operating Temperature −30°C to +70°C

Storage Temperature −40°C to +80°C

Operating Frequency 20kHz to 170kHz

Reaction Time 10ms (fastest)

Loop Inductance 50uH to 1,000uH (ideal: 100uH to 300uH)

Maximum Connecting-Wire Length 100 meters, twisted at least 20 times per meter
